keiomobile2 password authentication method

Android

This manual is based on Android 5 (Nexus 7). Some details may differ depending on version, devices and environment.

  1. Click [Settings].

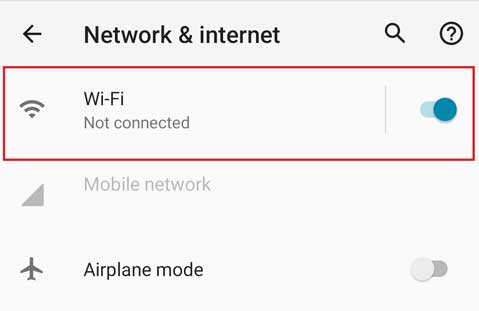

  2. Click [WIRELESS & NETWORKS] - [Wi-Fi].
    Turn Wi-Fi on if it is [Wi-Fi OFF].

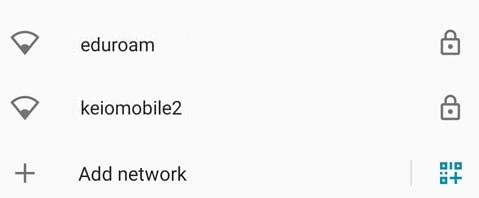

  3. Tap the top right corner of the icon , and select Add network.
    ※By tapping [+] icon , may be able Add network


  4. In [Add network] window, fill out the network information as following.
    Network SSID: keiomobile2x
    Security: WPA/WPA2 PSK
    Password: welcome!
    Click [Save].

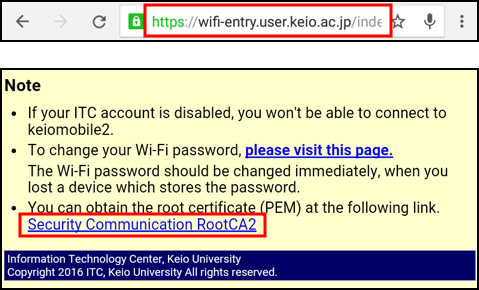

  5. Connected to [keiomobile2x], start up the web browser and go to https://wifi-entry.user.keio.ac.jp/index.html.en
    “Generate Wi-Fi password for keiomobile2” page shows up, then click the link “Seccurity Communication RootCA2” to download the certificate.

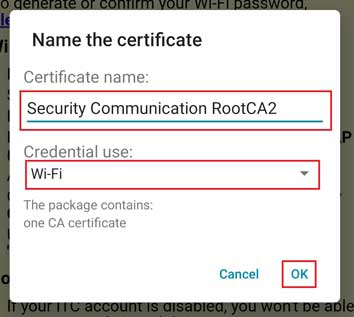

  6. In [Name the certificate] window, enter "Security Communication RootCA2" for [Certificate name:] and "Wi-Fi" for [Credential use:].
    Click [OK].


  7. Click [WIRELESS & NETWORKS] - [Wi-Fi] - [keiomobile2x].
    On [keiomobile2x] window, click [Forget].

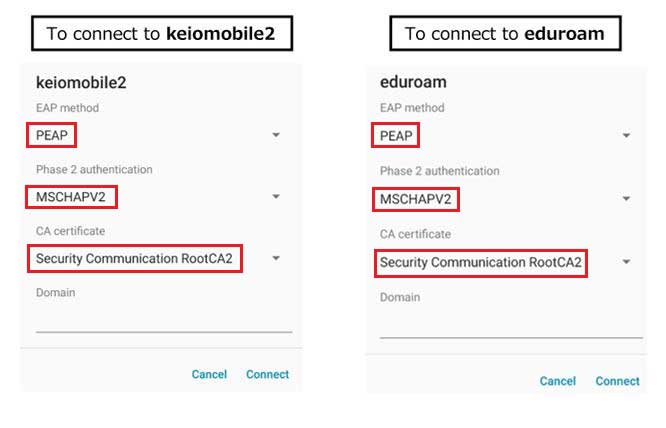

  8. To connect to keiomobile2, after connecting to [keiomobile2], enter the following setting.
    To connect to eduroam, after connecting to [eduroam], enter the following setting.
    EAP method: PEAP
    Phase2 authentication: MSCHAPV2
    CA certificate: Security Communication RootCA2

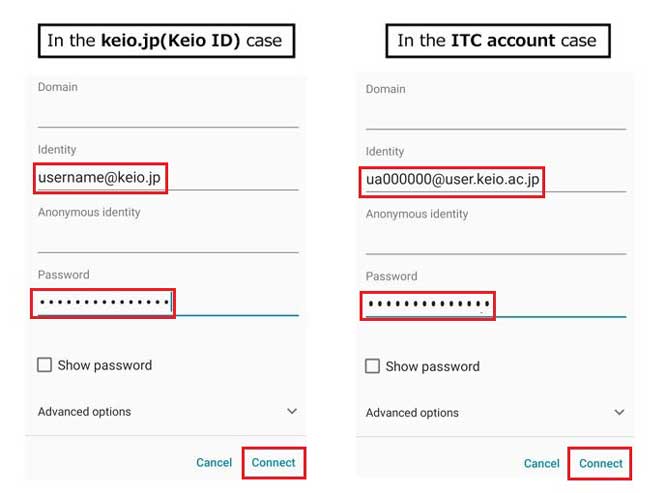

  9. Enter [ID] and [Password] and finally, tap [Connect].
    In the Keio.jp (Keio ID) case, enter “Wi-Fi user name” and “Wi-Fi password”.
    In the ITC account case, enter “Your ITC account@user.keio.ac.jp” and “Wi-Fi connection password at ITC account”.

Last-Modified: March 7, 2017
