Password connection to keiomobile2/eduroam

Windows 10/ Windows 8.1/ Windows 7

  1. Windows 10

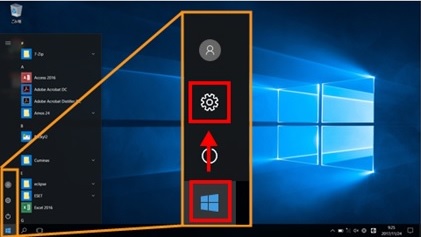

    Click [Start button] and click [Settings] icon.

    Windows 7 / 8.1
    Right click [Network] when [Notification Domain] of the task bar is displayed, then click [Open network and share center].



  2. Windows 10

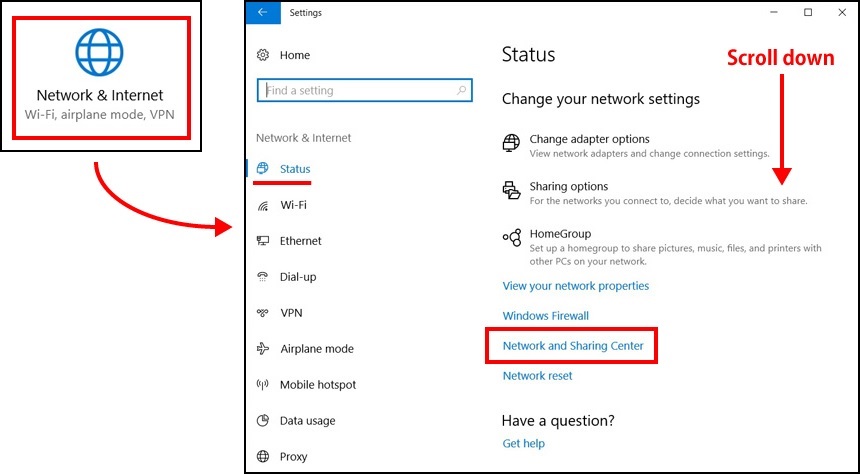

    When the setting screen opens, click [Network & Internet] and click [Network and Sharing Center].

    Windows 7 / 8.1
    Skip this step and proceed to the next step.

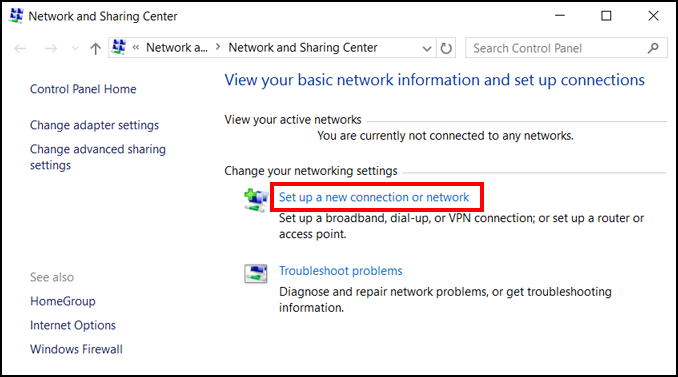

  3. Click [Set up a new connection or network].

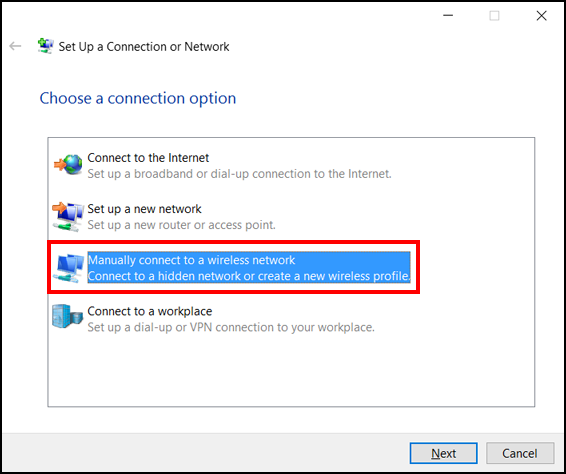

  4. Select [Manually connect to a wireless network] then click [Next].

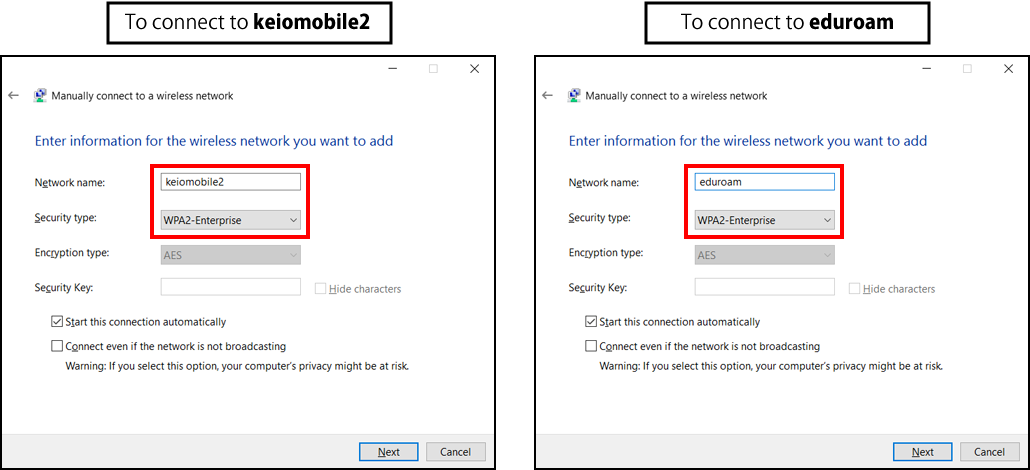

  5. To connect to keiomobile2, [Network name] - enter “keiomobile2”.
    To connect to eduroam, [Network name] - enter “eduroam”.
    Select [Security type] - [WPA2-Enterprise] and click [Next].

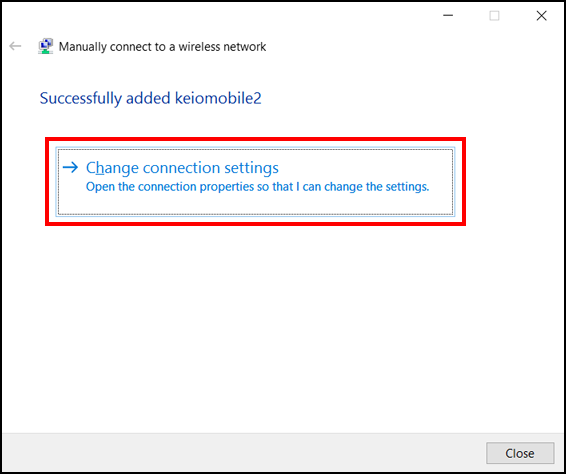

  6. To connect to keiomobile2, after [Successfully added keiomobile2] is displayed, click [Change connection setting].
    To connect to eduroam, after [Successfully added eduroam] is displayed, click [Change connection setting].
    ※ After that, as an example, do the setting on the screen of keiomobile2.

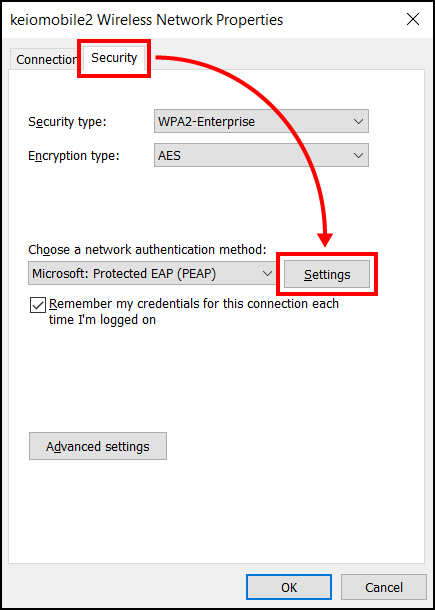

  7. After [Wireless Network Properties] is displayed, click [Security] - [Choose a network authentication method] - [Setting].

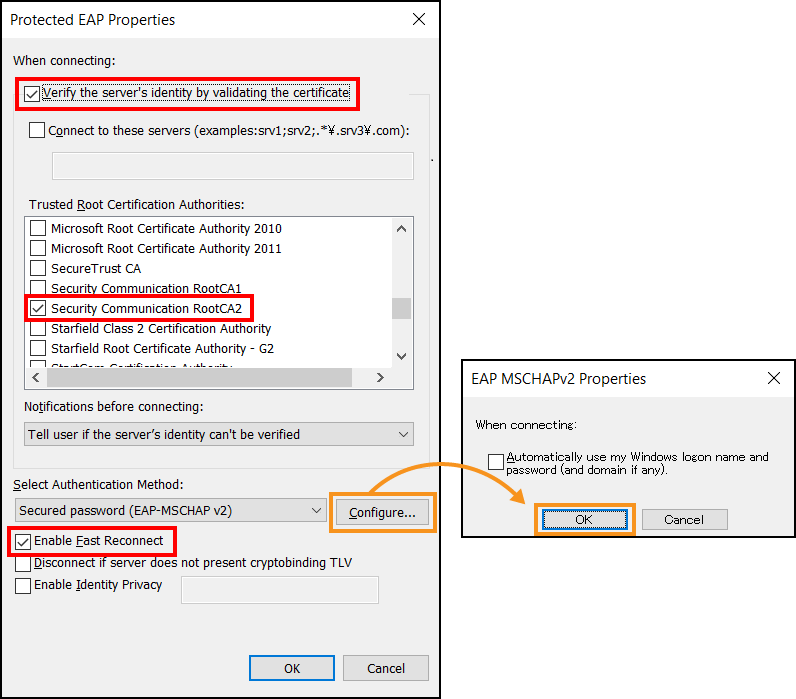

  8. After [Protected EAP Properties] is displayed, a check is entered on the following contents.
    [When connecting] - [Verify the server's identity by validating the certificate]
    [Trust Root Certification Authorities] - [Security Communication RootCA2]
    [Select Authentication Method] - [Enable Fast Reconnect]
    Next, click [Select authentication method] - [Configure] and remove a check from [Windows logon name and password], click [OK].

    ※ Case where certificate is not displayed in root certifying body that is trusted
    1. Perform steps until "Network certificate Install (Windows 10)"
    2. Download and install [Security Communication RootCA2] with Internet Explorer, Microsoft Edge.

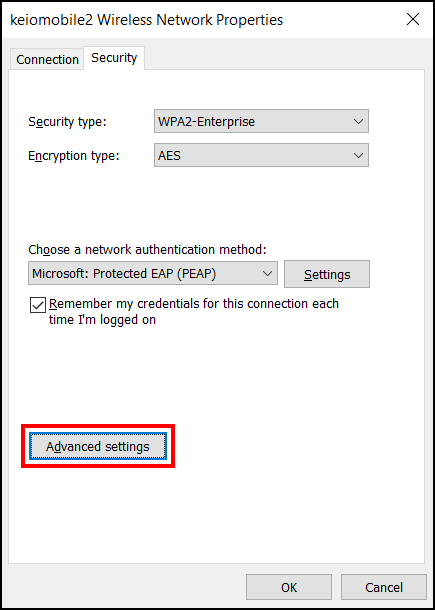

  9. After [Wireless Network Properties] is displayed, click the [Advanced Setting].

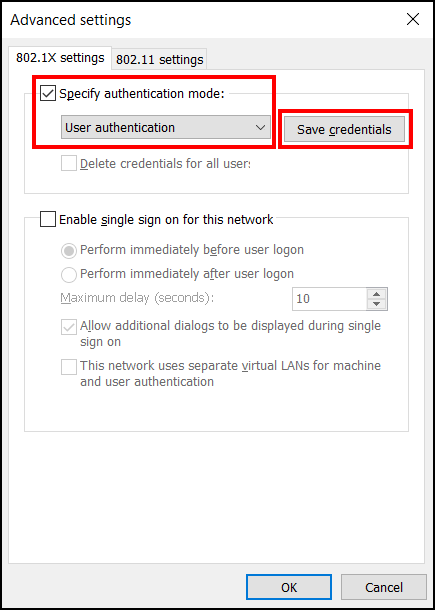

  10. After [Advanced Setting] is displayed, enter a check at [Specify authentication mode] and after selecting [user authentication], click [Save credentials].

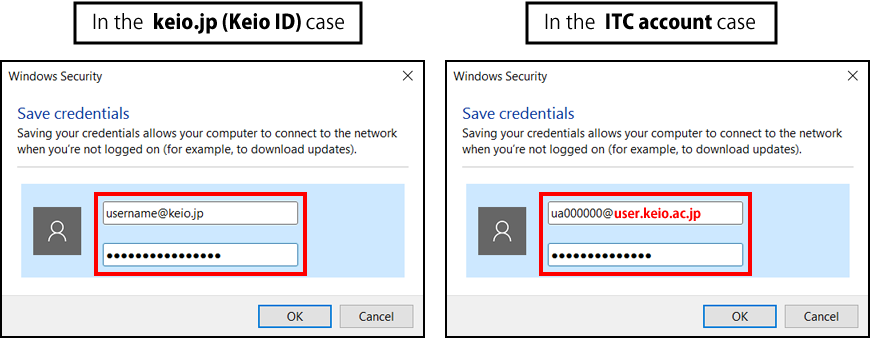

  11. Enter [User name] and [Password] and click all [OK] to complete setting.
    In the keio.jp (Keio ID) case, enter “WiFi user name” and “WiFi password”.
    In the case of ITC account, enter, “your ITC account@user.keio.ac.jp” and “WiFi connection password of the ITC account”.


If you cannot connect to [keiomobile2] after setting, delete wireless LAN profile (keiomobile2), then restart your PC and again perform [Network setup].

Concerning deletion of wireless LAN profile (keiomobile2). (Japanese article)
