keiomobile2 password authentication method

Android 11/12

This manual is based on Android 11 (moto g8). Some details may differ depending on version, devices and environment.

  1. Tap [Settings].

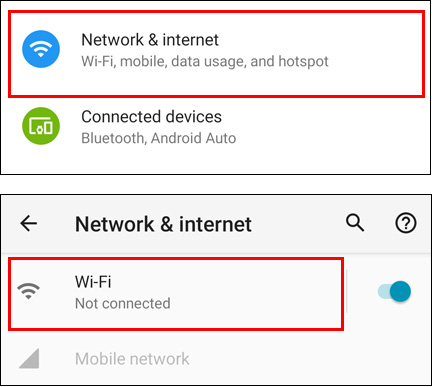

  2. Tap [Network & internet] - [Wi-Fi].
    Turn Wi-Fi on if it is [Wi-Fi OFF].

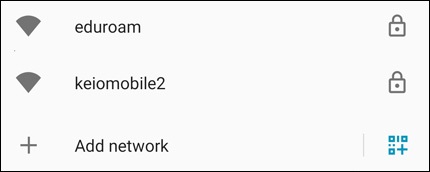

  3. Select [keiomobile2] or [eduroam].

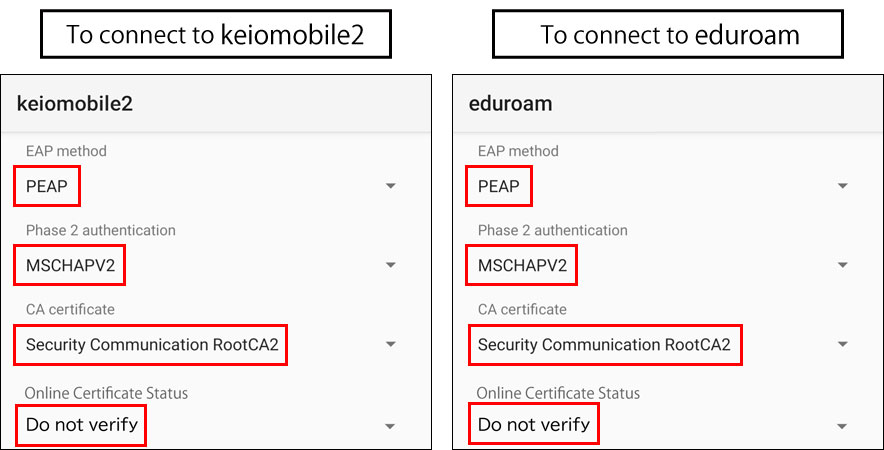

  4. To connect to keiomobile2, after connecting to [keiomobile2], enter the following setting.
    To connect to eduroam, after connecting to [eduroam], enter the following setting.
    EAP method: PEAP
    Phase2 authentication: MSCHAPV2
    CA certificate: Security Communication RootCA2
    ※If CA certificate cannot be selected, see Download Root Certificate

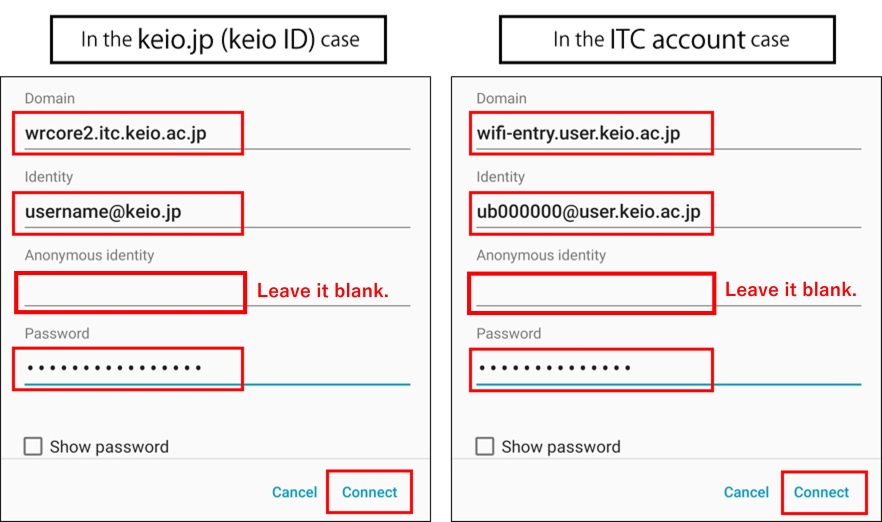

  5. Enter [Domain] and [ID] and [Password] and finally, tap [Connect].
    In the keio.jp(Keio ID) case "wrcore2.itc.keio.ac.jp"
    In the ITC account case "wifi-entry.user.keio.ac.jp"
    In the keio.jp (Keio ID) case, enter “Wi-Fi user name” and “Wi-Fi password”.
    In the ITC account case, enter “Your ITC account@user.keio.ac.jp” and “Wi-Fi connection password at ITC account”.


  6. This completes the Wi-Fi connection process. If you have successfully connected, no further work is required.


Download Root Certificate

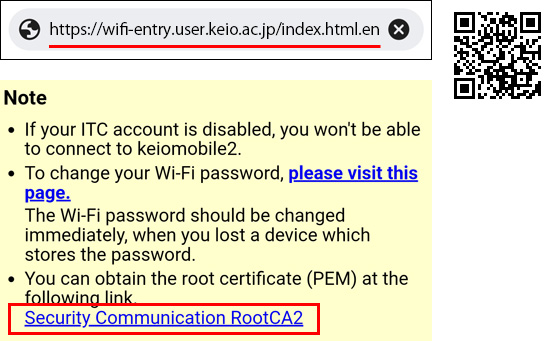

  1. Start up the web browser and go to https://wifi-entry.user.keio.ac.jp/index.html.en
    ※You can also access it via QR code.
    “Generate Wi-Fi password for keiomobile2” page shows up, then tap the link “Seccurity Communication RootCA2” to download the certificate.

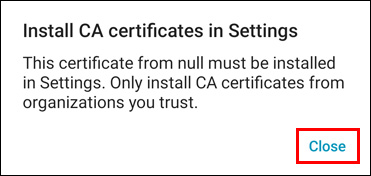

  2. In [Install CA certificates in Settings] window, tap [Close].

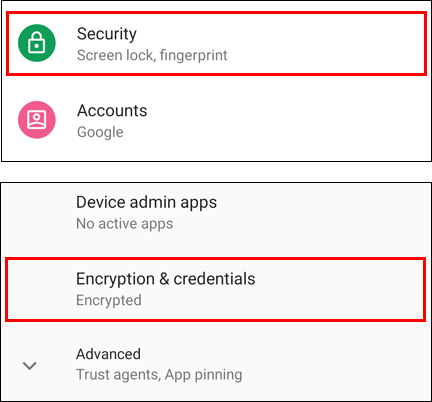

  3. Tap [Settings] - [Security] - [Encryption & credentials].

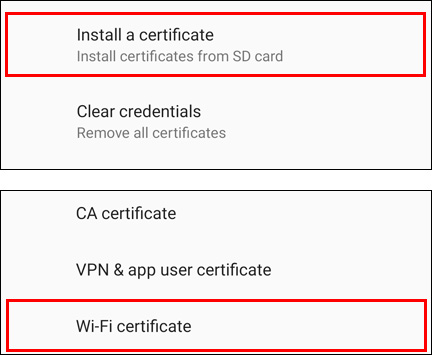

  4. Tap [Install a certificate] - [Wi-Fi certificate].
    ※Some models may display [WLAN certificate]

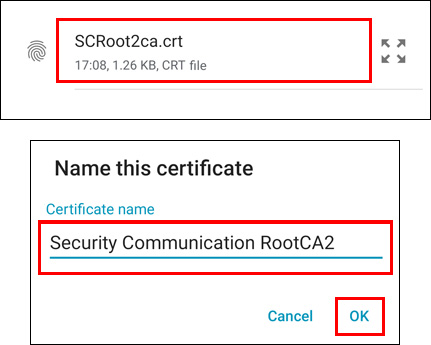

  5. Tap the certificate(SCRoot2ca.crt) you downloaded.
    In [Name the certificate] window, enter "Security Communication RootCA2" for [Certificate name:] .
    Tap [OK].


Last-Modified: March 22, 2023
